Edit Images in OU Campus

How to Edit Images in OU Campus

OU Campus Training and Standards

The OU Campus Image Editor allows images to be resized, cropped and rotated directly in OU Campus.

Image changes/uploads will NOT appear in OU Campus until AFTER the updated image has been published to the web server.

Instructions for editing images are lower on the page >>>

To insert an image:

  1. Navigate to the section of the page you wish to add the image, log in to OU Campus.
  2. Place your pointer where you wish the image to display.
  3. Select the "Insert/Edit Image" button:
  4. Select: " Browse"
    You will be taken into the following path:
    /images/users/yourdirectorynamehere
    select image

    This is where you can upload images to place on your page.
  5. Select the image you wish to add to your page. You can view the thumbnails by selecting "View Thumbnails".

    NOTE: If you need to edit the image, select the "Edit Image" link. (More about editing images below >>>)Otherwise, select "Insert" and "OK"select imageinsert image
  6. To align an image to the right of the content:
    Highlight your image, then select the "Styles" dropdown, then select "Image Align Right".

    image on page
  7. Once the page is published, the image will be published to the web server and display on the page.


Editing Images Within OU Campus

Most often, "resize" and "crop" are the tools used when editing an image to place on a webpage. Using these tools will allow you to edit the image to the exact size it will be used on the page.

NOTE: If adding a faculty/staff image, each image should be the same width on the page to display correctly.

Resize

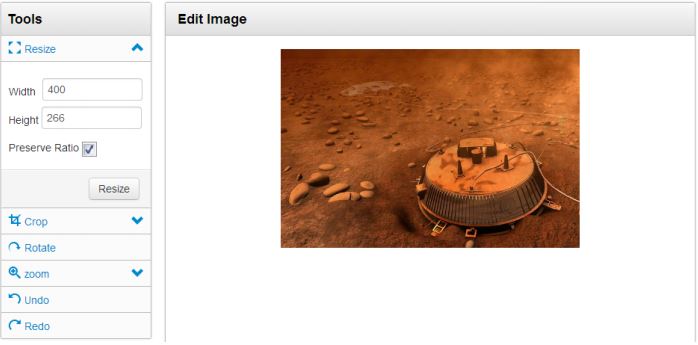

The Resize tool includes the ability to specify a new width and height for an image to upload. The original ratio for the dimensions of the width and height for can be kept intact by selecting the Preserver Ratio checkbox.

resize

Crop (Custom)

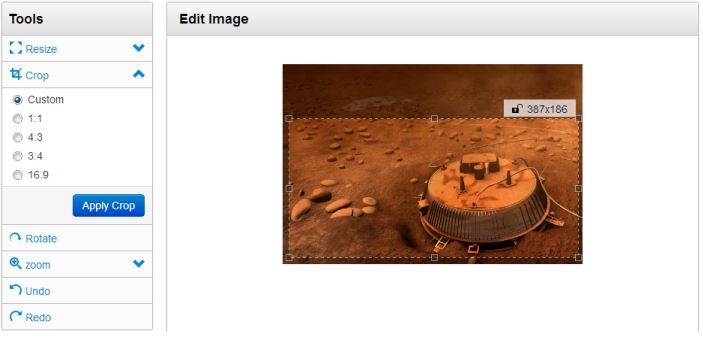

The Crop tool can be used to reduce the dimensions of the image by either selecting a ratio or by determining a custom crop size by manipulating the crop box by dragging the crop handles located on the edges of the crop box.

crop

Rotate

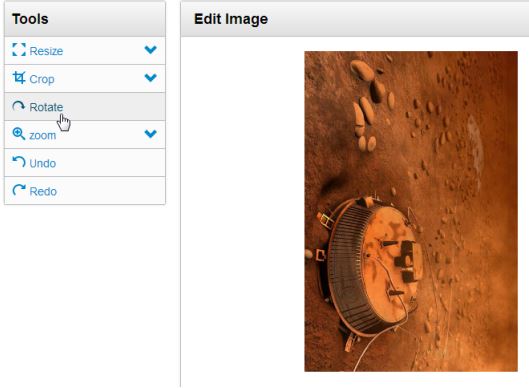

The Rotate tool rotates the image (edited and unedited) 45 degrees in a clockwise direction with each click.
rotate


Undo/Redo

The Undo and Redo functionality is available after performing another editing function.

 Using the OU Campus image editor to crop and resize images will give you the freedom to crop and resize images to the exact file size used on the web page.

You can also contact the UT Tyler Web Team for assistance with image editing.

For more details, see OU Campus Upload and Edit Image Overview.
